Steam Jacketed Kettles: Industrial Kettle

Our stainless-steel, scraped surface Industrial Steam Jacketed Kettles range from 50 to 5000 litres. These can be part of the DCN Cook-Chill System or used independently.

steam jacketed kettle: Advanced Design

DC Norris Industrial Kettles are designed using a one-piece pressing technique to ensure uniform heat distribution across the cooking surface, resulting in faster heat-up times and reducing the risk of localised hotspots.

Steam Jacketed Kettles support high-temperature cooking with steam pressure up to 10 bar and meet PED/PE(S)R/ASME Section VIII Div.1 or equivalent codes.

Seamless Integration

Our Industrial Kettles can form part of the DCN Cook-Chill System or used independently. Integrate our industrial kettles into your existing processes with a variety of outlet options, including manual or automatic ball valves and EHEDG certified air-operated drop-down valves.

Comprehensive Installation

Fully fabricated steam kettle systems are installed on DC Norris’ specially designed support gantry and flooring with our Stardeck Treadplate.

Kettle Cuisine 5 industrial cooking kettle

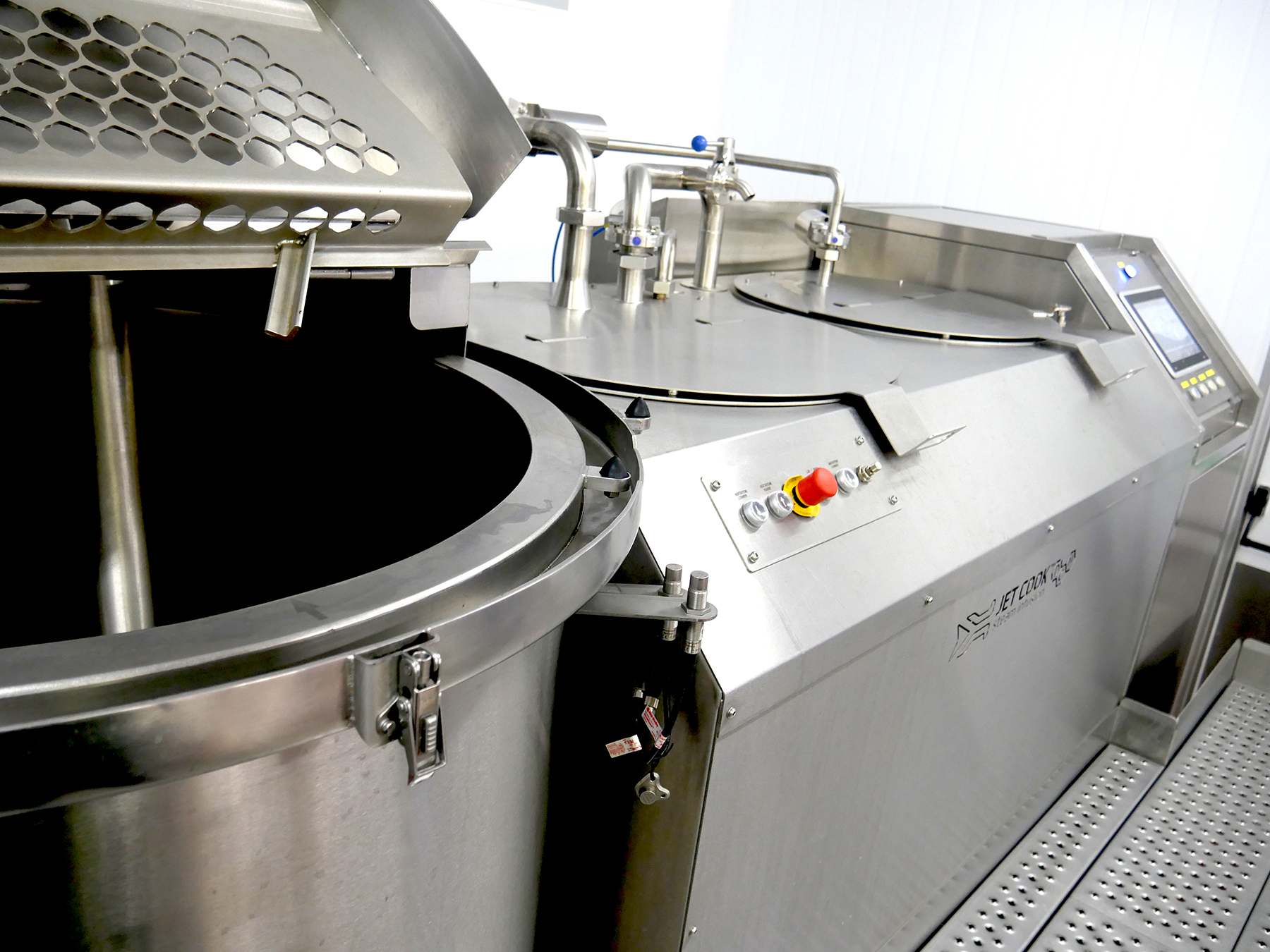

Kettle powder entrainment system for industrial cooking

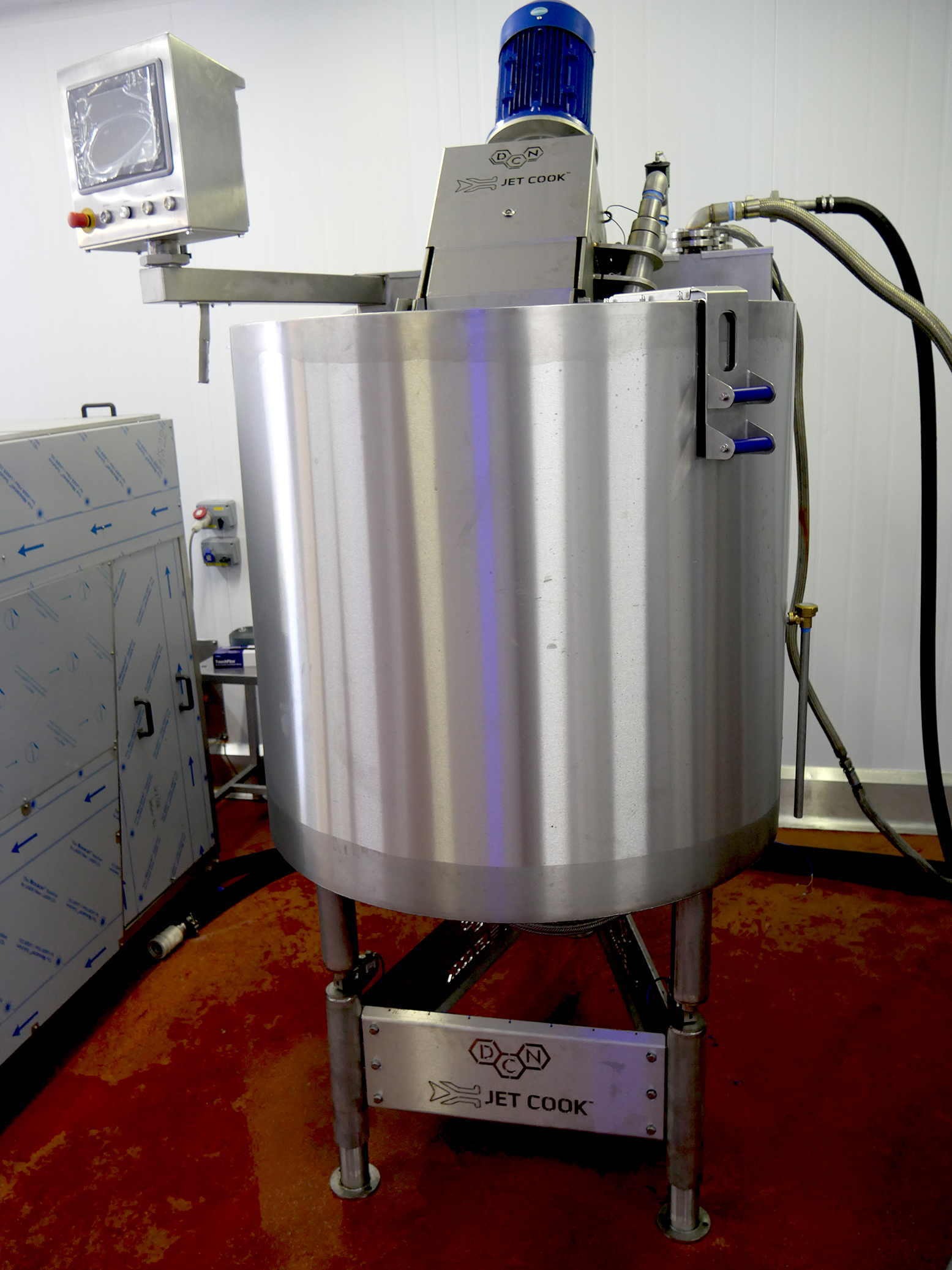

SR2C 500L industrial cooking kettle by DC Norris

AOT industrial cooking equipment by DC Norris

Industrial Cooking Kettles are available with a huge range of accessories and features including:

Jet Cook System
Braising Bar – Caramelising system for onions and meat
Recipe Manager Automation Software
Multi Aperture Discharge System (MADS)
In-vessel Homogenisers
Shovel Scraper Blades
Horizontal and inclined agitators

Standard capacities: 300–1500 litres (larger sizes available on request)
Inclined scraping agitator with patented scoop-type scraper shovels and replaceable, heat-resistant, food-grade plastic blades
Steam jacket rated up to 10 bar, with dual steam connections for even heat distribution
Food contact parts made from stainless steel grade 316; all other parts in grade 304
Available to ASME VIII Div. 1 standards
Designed and constructed in compliance with PED
Optional split jacket for efficient cooking of small batches
Supported by three or four legs, depending on size
Fully insulated with a stainless steel outer sheath
Internal sanitary finish: 180 grit as standard
External surfaces: semi-deluxe buff or bead-blast finish (custom finishes available)
Standard internal sanitary finish of 180 grit
External surfaces have a semi-deluxe buff or bead blast finish (or to customers specification)

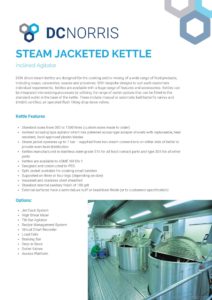

Steam Jacketed Kettle – Inclined Agitator

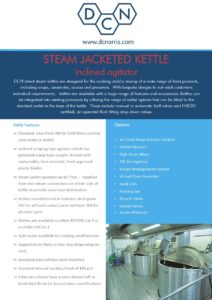

Steam Jacketed Kettle Brochure

Download

Relevant systems

Multiple Aperture Discharge System (MADS)

DCN developed the Multiple Aperture Discharge System (MADS) as a solution for removing liquids / fats from products during the initial cooking process, to improve particulate integrity, flavour and texture.

Joni Foodline Electric Tilting Kettles for Industrial Cooking

DC Norris is proud to be the UK agent for Jøni Foodline Equipment—a renowned Danish manufacturer supplying innovative catering equipment across Europe since 1973. Their extensive range includes high-quality tilting kettles, electric kettles and tilting frying pans, along with advanced cooking ranges designed specifically for the catering industry.

In-line Continuous Processing Systems

We also offer In-line Continuous Processing for seamless, uninterrupted production suitable for high-volume operations and products such as beverages, baby food, pet food, condensed milk, sports and health drinks
